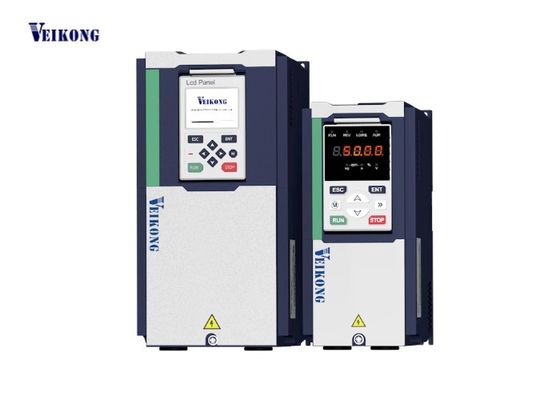

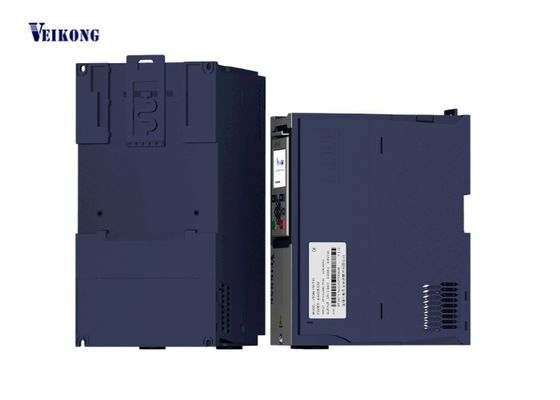

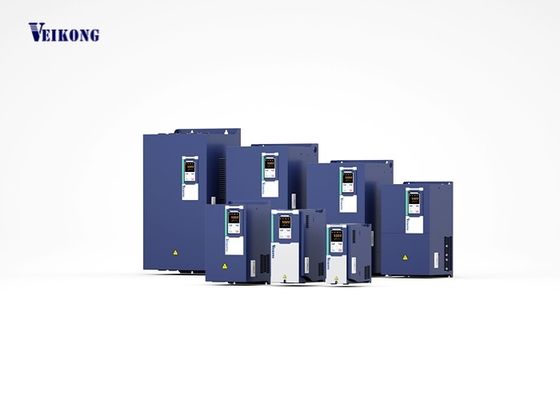

3-Phase Solar Pump Inverter with 99% MPPT Efficiency, Auto Operation, and LCD Status Monitor
  • 3-Phase Solar Pump Inverter with 99% MPPT Efficiency, Auto Operation, and LCD Status Monitor
  • 3-Phase Solar Pump Inverter with 99% MPPT Efficiency, Auto Operation, and LCD Status Monitor
  • 3-Phase Solar Pump Inverter with 99% MPPT Efficiency, Auto Operation, and LCD Status Monitor
  • 3-Phase Solar Pump Inverter with 99% MPPT Efficiency, Auto Operation, and LCD Status Monitor
Luogo di origine Cina
Marca VEIKONG
Certificazione CE IEC
Numero di modello VFD500-PV
Quantità di ordine minimo 50 pezzi
Imballaggi particolari cartone di carta sotto 45kw, a partire dall'argomento di legno 45kw per imballare
Tempi di consegna 3-8 giorni lavorativi
Termini di pagamento Moneygram, Western Union, T/T, D/P, D/A, L/C.
Capacità di alimentazione 15000 al mese
Dettagli
Nome prodotto Invertitore di VFD500-PV Voltaggio 220V 380V
Display LCD e LED Frequenza 50Hz/60Hz
OEM Supporto Livello di protezione IP20/IP65
Evidenziare Ibrido MPPT VFD Solar Pump Inverter, IP65 MPPT VFD Pompa solare Inverter, Inverter per pompa solare
Descrizione di prodotto

99% MPPT 3 Phase Solar Pump Inverter With Automatic Running LCD Monitoring


99% MPPT 3 Phase Solar Pump Inverter With Automatic Running & LCD Monitoring

1. Veikong solar pump inverter high performance product features achieve higher requirement in water supply

1) Built-in C3 EMC filter and DSP technology and Infineon PIM design, with functions of light weak protection, dry run and low voltage, full water warning, overvoltage and overtemperature protection.

2) Support PID function within MPPT control.

3) Hybrid dc and ac power and support one button switch to ac power.

4) Advanced calculation for Pump flow and LCD monitoring display.

5) Automatic running without any commissioning in keypad control and optional GPRS monitoring.


2. VFD500-PV three phase models and factory environment


Dr


ive model

Max DC input current (A)

Rated output current (A)

Applicable water pump (kW)

VFD500M-40T00150-PV

9

3.7

1.5

VFD500M-40T00220-PV

12

5

2.2

VFD500M-40T00400-PV

16.5

9.4

4

VFD500M-40T00550-PV

23.9

13

5.5

VFD500M-40T00750-PV

30.6

17

7.5

VFD500-40T00150-PV

9

4.2

1.5

VFD500-40T00220-PV

12

5.6

2.2

VFD500-40T00400-PV

16.5

9.4

4

VFD500-40T00550-PV

23.9

13

5.5

VFD500-40T00750-PV

30.6

17

7.5

VFD50040T01100-PV

39.2

25

11

VFD500-40T01500-PV

49.0

32

15

VFD500-40T01850-PV

50

37

18.5

VFD500-40T02200-PV

60

45

22

VFD500-40T03000-PV

81

60

30

VFD500-40T03700-PV

90

75

37

VFD500-40T04500-PV

130

90

45

VFD500-40T05500-PV

150

112

55

VFD500-40T07500-PV

200

152

75

VFD500-40T09000-PV

250

176

90

VFD500-40T11000-PV

300

210

110

VFD500-40T13200-PV

360

253

132

VFD500-40T16000-PV

430

304

160

VFD500-40T18500-PV

500

360

185

VFD500-40T20000-PV

550

380

200

VFD500-40T22000-PV

620

426

220

VFD500-40T25000-PV

680

465

250











































Key Features:


Product Details and Features:

1. Power from 220V (0.75 – 75KW) , 380V (0.75 – 160KW)

2. DC/AC Input Compatible, can support DC and AC Input at same time

3. Protection Functions: Over/Under voltage Over-current, Short Circuit, Phase Failure etc

4. Optimized MPPT Arithmetic Accuracy 99%

5. Multi-liquid-level Control, Dry run protection, Wake and Sleep function,,PID control

6. Auto-dormancy on weak light, auto-recovery working on strong light, no need for man-made operations

7. Auto switch over From Solar to Grid Supply with weak light

8. Support optional LCD display and GPRS module.


Product Application

3-Phase Solar Pump Inverter with 99% MPPT Efficiency, Auto Operation, and LCD Status Monitor 0

3-Phase Solar Pump Inverter with 99% MPPT Efficiency, Auto Operation, and LCD Status Monitor 1




FAQ

1. Use level probe in the well for protection against dry running
First solution: See self learning of dry run
Second solution: do it manually Set P24.13=30%-60%(as per real empty load current percentage based on
rated current) and P24.14 P24.16 and P23.21
Third solution: If your sensor is digital switch ,just short D4 and com
Fourth solution: If your float signal is Analog signal, Connect Ai2 and 10V and GND and set P41.00=23 and
P41.03-P41.06

2. How to set minimum frequency ( for example) 30hz and maximum 50HZ
Set P47.05=30HZ and 47.06 to some time and 47.07 to some time. Please refer to details of P47.05-47.07

Customer service and technical support


1. Pre-sale service

  • Listen to any raised needs and technical issues;
  • Send relevant technical information and solutions quickly;
  • Offer the best solution and quotation for the equipments;
  • Provide convenience to visit factory and on-site inspections.

2. Sale service

  • Treat very contract seriously, impartially and honestly;
  • Implement the contracts on time and in good quality strictly ;
  • Free to provide the service(installation, debug, trainning.etc).


3. After-sales service

  • 18 monthes warranty in service period, Offer free components.
  • After installation and commission, free training for system;
  • Fault site: reply within 12 hours, dispatch staff within 3 days if necessary.
