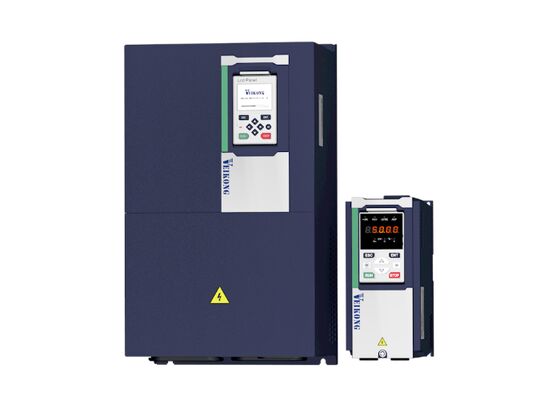

VFD550I Series Electro-hydraulic Servo Drive for Injection Molding Machine, Die-casting Machine, Hydraulic Press
| Luogo di origine | Cina |
|---|---|
| Marca | VEIKONG |
| Certificazione | CE IEC |
| Numero di modello | VFD550I |
| Quantità di ordine minimo | 1 |
| Imballaggi particolari | il potere più di meno del cartone di uso 45kw, a partire dal caso di legno di uso 45kw |
| Tempi di consegna | dipenda dalla quantità di ordine |
| Capacità di alimentazione | 15000pcs al mese |
Dettagli
| Applicazione | Progettato per controllo idraulico, macchine per stampaggio a iniezione, macchine per pressofusione, | Modalità di controllo | Controllo V/f, controllo vettoriale senza sensore (SVC), controllo vettoriale con scheda PG (VC) |
|---|---|---|---|
| Frequenza di ingresso | 50/60Hz, fluttuazione <5% | Display | Norma LED; LED a doppia linea, LCD opzionale |
| Tipo di raffreddamento | Design del condotto indipendente | Precisione della pressione | Superamento ≤±1%, fluttuazione stazionaria ≤±0,5Bar |
Descrizione di prodotto
1.The VEIKONG VFD550I series electro-hydraulic servo drive is a high-performance, dedicated drive solution for hydraulic systems. By combining advanced control algorithms, high-speed response capability, strong overload performance, and efficient energy-saving design, it greatly improves the stability, precision and productivity of hydraulic machinery. It is widely applied in injection molding machines, die-casting machines, hydraulic presses, hydraulic stations and other industrial equipment.
High-Precision Pressure & Flow Control
The VFD550I adopts a self-developed closed-loop pressure control algorithm, which realizes fast, accurate and stable pressure adjustment. The pressure response time can reach 20ms, with pressure overshoot ≤±1% and steady-state fluctuation ≤±0.5Bar. It supports 0.02s synchronous follow of pressure and flow commands, ensuring high consistency of product molding and effectively reducing reject rates.
Ultra-High Dynamic Response Performance
With excellent dynamic response characteristics, the system can quickly track flow and pressure signals, significantly shortening the working cycle of hydraulic machinery. The fast response speed greatly improves the operating efficiency of the whole machine, making equipment actions more sensitive and smooth, and achieving higher production efficiency under the same working conditions.
Outstanding Energy-Saving Performance
The system adopts permanent magnet synchronous motor matching and adaptive energy optimization control. It automatically adjusts the torque-speed ratio according to actual load demands to minimize unnecessary power loss. The energy-saving rate can reach 20%–60% in actual working conditions, which greatly reduces the power consumption cost of users and brings long-term economic benefits.
Strong Overload & Stable Operation Capacity
The drive has excellent overload resistance: 150% rated output current for 60 seconds and 180% rated output current for 10 seconds. It can maintain stable output under impact load, heavy load and sudden change working conditions, ensuring continuous and reliable operation of equipment, reducing downtime and improving overall production stability.
Multi-Pump Confluence & Diversion Control
Built-in CAN bus communication supports multi-pump combined control system, which can realize automatic switching between confluence and diversion. Multiple drives can work in master-slave mode to complete synchronous action or independent action at the same time. Compared with traditional single-pump or simple confluence systems, it has higher response speed and more flexible control, greatly shortening production cycles.
Wide Compatibility & Flexible Configuration
It supports both PMSM and asynchronous motor drive, and can match incremental encoder, resolver or encoderless vector control mode. Standard LED operation panel, optional dual-line LED or LCD panel, supports parameter copy, fault query, status monitoring and other functions, making commissioning and maintenance more convenient.
Rich Protection & Reliable Industrial Design
With complete fault protection functions including overcurrent, overvoltage, undervoltage, overload, overheating and phase loss. The independent air duct design enhances heat dissipation performance; the motor features IP54 protection, low temperature rise (max 50°C), high rigidity and vibration resistance. It adapts to harsh industrial environments and ensures long-term stable operation.
Excellent Application Performance in Real Working Conditions
When applied to injection molding machines, die-casting machines, presses and metal balers, the VFD550I series can improve machine efficiency by about 10%, achieve positioning accuracy ≤0.1mm, stable pressure control, low noise and low vibration. It has been verified in a large number of renovation projects that the energy-saving effect is remarkable and the product quality is significantly improved.
2.Poster
3.Standard wiring Map
4.Why chose VEIKONG?
1. Infineon brand IGBT/Fuji IGBT, enduree temperature 175°C
2. Two-lines LED keypad/LCD kaypad
3. Fan: 70 000 hours using life
4. Capacitor: 50 000 hours using life
5. Input phase lacking protection
6. Output short circuit protection
7. Overvoltage protection
9. 10 000-15 000pcs per month production ability
10. 500pcs stock below 90KW
11. CE ISO certification, TUV SGS authority
12. Strong RD department, can update software
5.Product Application
